Cr-48 Chromebook Network Card Replacement

Written By: Robert McLaughlin

Comments: 1

Cr-48 Chromebook Network Card Replacement

Difficulty

Moderate

Steps

Time Required

5 minutes

Introduction

The Cr-48 Chromebook shipped with a combined Wi-Fi / Cellular network card that can be easily removed and replaced if necessary. Use this guide to replace a malfunctioning network card in a Cr-48 Chromebook.

Tools

Step 1

To take out the battery, slide the switch on the bottom of the laptop.
The battery should then pop out and you can remove it.

Step 2

Using a pair of tweezers, remove the two rear rubber feet. You should then see the two screws underneath.

Step 3

First, position the computer to have the silver battery compartment closest to you. Then, using a Phillips #00 screwdriver, remove the ten 3 mm screws in the battery compartment.
Now, using the same screwdriver, remove the two 4.5 mm screws that were underneath the previously removed rubber feet.

Step 4

Starting where the body of the laptop and the laptop screen meet, pry apart the lower case from the rest of the laptop.
The case is easier to remove when separating in a clockwise motion, as seen in the pictures.

Step 5

Once you've removed the lower case, you should see the network card on the corner of the device containing the USB port.

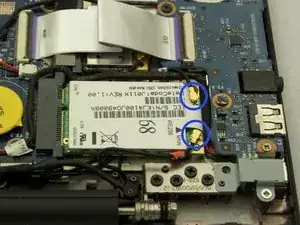

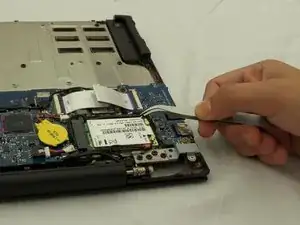

Disconnect the Wire connections on the network card using forceps or tweezers.

Step 6

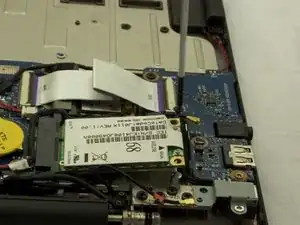

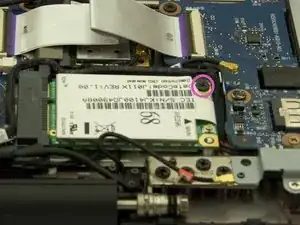

Remove Screw securing network card.
Size ph#00, approximately 3 mm long.
Once the screw is removed, the network card will pop up.

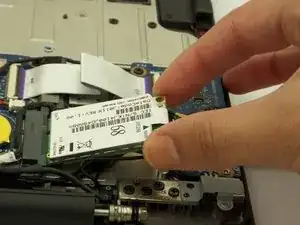

Pull the network card to remove it from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Robert McLaughlin

Member since: 10/09/14

462 Reputation

One comment

The card identified in the pictures is not a combined Wi-Fi / Cellular card. It is just a 3G cellular card; the WiFi card is the other card tucked under the flat ribbon next to the card pictured in this guide

Jorge Gomes - 02/03/19
