Cr-48 Chromebook SSD Replacement

Written By: Athar
  • Comments: 0
Cr-48 Chromebook SSD Replacement

Difficulty

Moderate

Steps

6

Time Required

20 minutes

Introduction

Before starting, please:

  • make sure nothing is attached (such as AC adapter, USB, VGA, audio jack).
  • remove any inserted SD card.

  1. huABA2FiCtnG2Vq3
    huABA2FiCtnG2Vq3
    gnGVSkZRnRx5xsxr
    xMZGgYeYJwN2DqkA

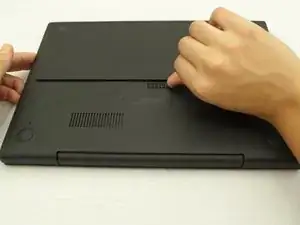

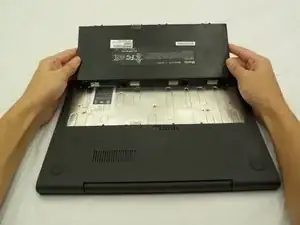

    • To take out the battery, slide the switch on the bottom of the laptop.

    • The battery should then pop out and you can remove it.

  2. SBv1xHCQtZJUH12x
    SBv1xHCQtZJUH12x
    jcP2VM5oo3hrgmZC

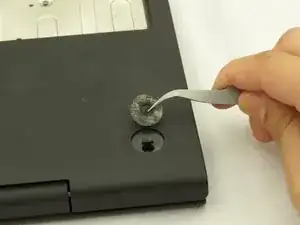

    • Using a pair of tweezers, remove the two rear rubber feet. You should then see the two screws underneath.

  3. HMZRrNHWlCuAB5ES
    HMZRrNHWlCuAB5ES
    b1bx1qpMcZiZU5Yb
    rQm2t2guiDnZ41oS

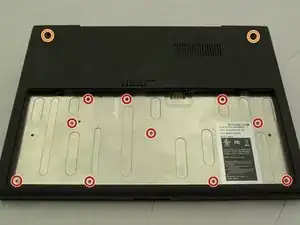

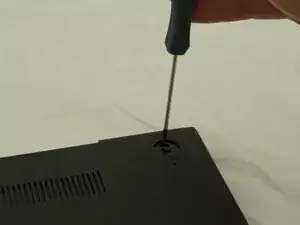

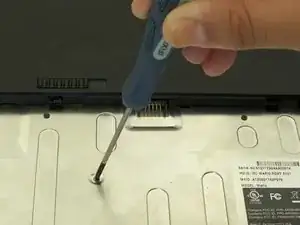

    • First, position the computer to have the silver battery compartment closest to you. Then, using a Phillips #00 screwdriver, remove the ten 3 mm screws in the battery compartment.

    • Now, using the same screwdriver, remove the two 4.5 mm screws that were underneath the previously removed rubber feet.

  4. OTWCjSmB1UfFgj2d
    OTWCjSmB1UfFgj2d
    kE2yYIRVKnJFyjQC
    lMwRsqSqNVBJVrnx

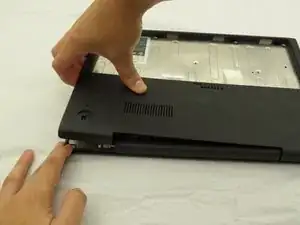

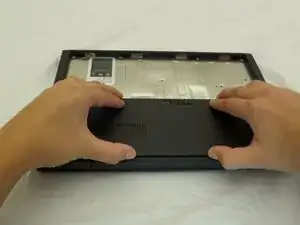

    • Starting where the body of the laptop and the laptop screen meet, pry apart the lower case from the rest of the laptop.

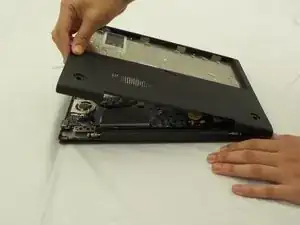

    • The case is easier to remove when separating in a clockwise motion, as seen in the pictures.

  5. FMyVJIrN2fKApSCM
    FMyVJIrN2fKApSCM
    VyT5iygGit2ADKBx
    gfFwKNM1H3Oym3RH

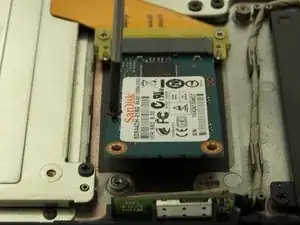

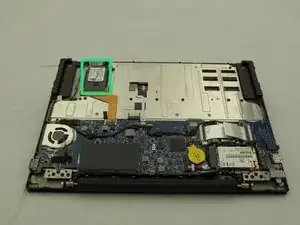

    • Find the SSD located on a corner of the side directly opposite where the laptop screen and device body are connected.

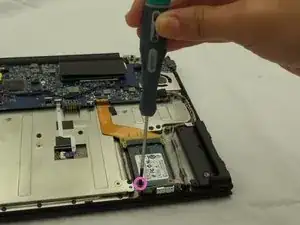

    • Remove one black screw on the SSD using a PH #00 screwdriver.

    • Size ph#00, approximately 3 mm long.

    • Once unscrewed, the SSD will pop up from the device.

  6. VGSwjxQGFCToSNdJ
    VGSwjxQGFCToSNdJ
    DljPhHcM2AwN1dBb

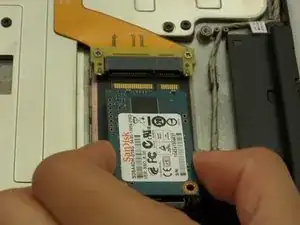

    • Firmly grasp the SSD with two fingers slightly upwards and pull.

Conclusion

To reassemble your device, follow these instructions in reverse order.
