Dell Inspiron 11-3162 Wireless WLAN Card Replacement

Written By: Dominic DeLong
  • Comments: 0
Dell Inspiron 11-3162 Wireless WLAN Card Replacement

Difficulty

Moderate

Steps

9

Time Required

10 - 20 minutes

Introduction

If you clicked this link from the troubleshooting guide, follow these steps to help get your wireless back up and running.

  1. LVgLraILs1hL5NXt
    LVgLraILs1hL5NXt
    Nx6fbrxXsbNNEaY5

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

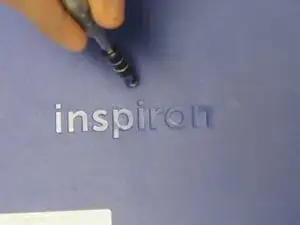

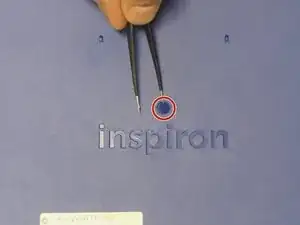

    • Use tweezers to pry and remove the center screw cover on the back cover.

  2. kGWABiOmeOtEHMPO
    kGWABiOmeOtEHMPO
    jmbimuQo2JAYUkVi

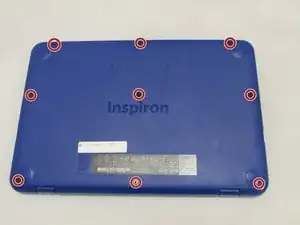

    • Use a Phillips screwdriver to unscrew the nine 6.8 mm screws securing the back cover.

  3. qhfwVOolBCB6PTAa

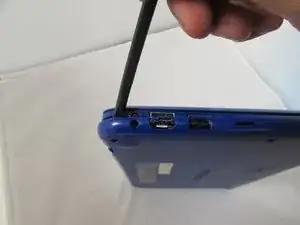

    • Use a spudger to pry around the base edges of the back cover to loosen it from the laptop.

    • Do not fully remove the cover, as it is still attached to the laptop with cables.

  4. PrU1LVaSZjfDrKWP
    PrU1LVaSZjfDrKWP
    wKxZwBUUPX5hIRCf
    cbhbJJoBGDUSjxoF

    • If you are only replacing the battery, you can skip this step. Be careful not to strain the still-connected cable as you work.

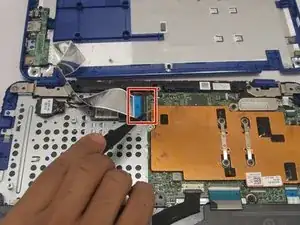

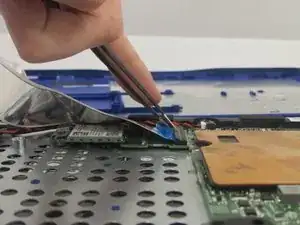

    • Unlock the wide ZIF connector securing the flex cable.

    • To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap.

    • Pull the ribbon cable outwards to disconnect the back cover from the motherboard.

  5. TysZpsNroiKfHcuA
    TysZpsNroiKfHcuA
    cRL6yolh4PCYx5x2

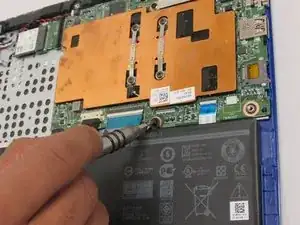

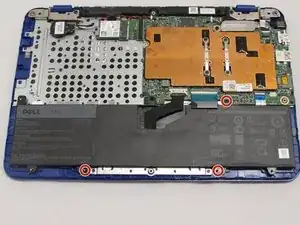

    • Use a Phillips screwdriver to unscrew the three 4 mm screws securing the battery.

  6. jaGPIeXbm3tMJZlo
    jaGPIeXbm3tMJZlo
    E1pjA6SC6cpWrfFT
    XAVGF6lP5OENqqNB

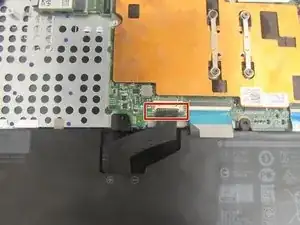

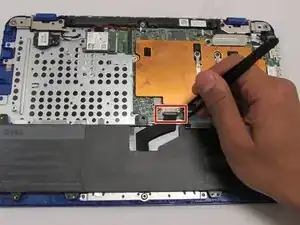

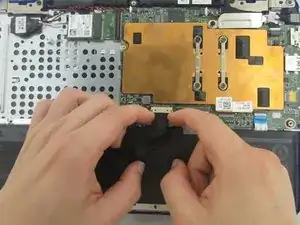

    • Use your fingers (or a set of tweezers) to disconnect the battery cable from the motherboard by gently pulling it towards the battery.

    • Pull parallel to the battery, not straight up.

    • Lift and remove the battery from its recess.

  7. M2gqTaHCSWKeNfVA
    M2gqTaHCSWKeNfVA
    WYK2MuF2HlN46gao

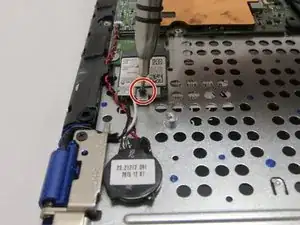

    • Use the phillips screwdriver with the PH000 head to unscrew the 3.8mm screw.

  8. vj1NEqoLKCeTNts4
    vj1NEqoLKCeTNts4
    RwZZZbXdeNEYroEo

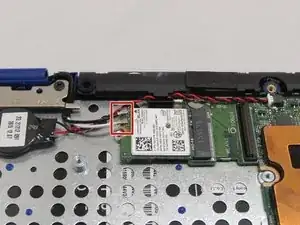

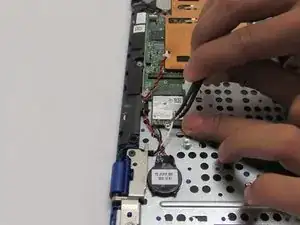

    • Using the tweezers, pull the white and black wires off of the WiFi Chip.

  9. 2ICikp1lxuhn2QRN

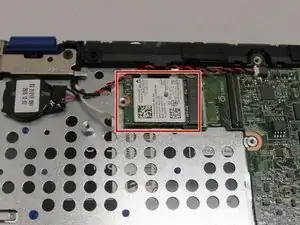

    • Pull out the WiFi Chip.

Conclusion

To reassemble your device, follow these instructions in reverse order.
