Dell Latitude 3520 Screen Replacement

Written By: Shawn Smith
  • Comments: 2
Dell Latitude 3520 Screen Replacement

Difficulty

Moderate

Steps

8

Time Required

15 - 30 minutes

Introduction

Utilize this step-by-step manual for swapping out the screen on your Dell Latitude 3520 laptop. If you are experiencing frequent screen blackouts or visibility issues, it might be the right moment for a replacement.

  1. FEmyLZYyZeEYINJL

    • Push the microSD-card to eject it from the slot.

    • Remove the microSD-card from the computer.

  2. NF54fGIPGVdxZMYc
    NF54fGIPGVdxZMYc
    YIoRNi2NQiVXgIoN
    gA3kWwiTfwLoKdD2

    • Loosen the nine screws 2mm Phillips #0 that secure the base cover to the assembly.

    • Using a plastic scribe, pry open the base cover starting from the recesses located in the indents near the hinges at the top edge of the base cover.

    • Carefully lift and remove the base cover.

  3. lgBXLrKBK1uLBDoN
    lgBXLrKBK1uLBDoN
    dJCZrHLTJpVKDlSt
    ginMpHGXiAWiMTYM

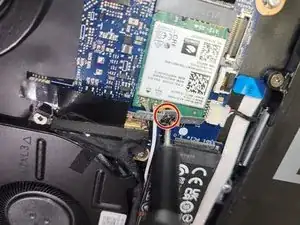

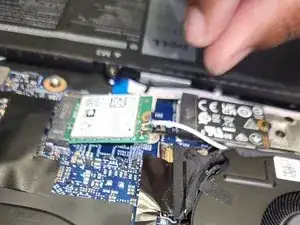

    • Remove the 2mm Phillip #0 screw that secures the WLAN card bracket to the WLAN card on the system board.

    • Lift and remove the WLAN card bracket from the WLAN card that secures the two antenna cables.

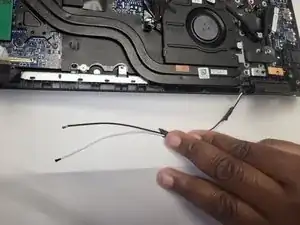

    • Disconnect the antenna cables from the connectors on the WLAN card.

    • Disconnect and remove the WLAN card from the WLAN card slot.

  4. UBBLTyPHCGASrS1t
    UBBLTyPHCGASrS1t
    BQYcn2fOoDUX611o
    EmKpfemyyqAZJ4GZ

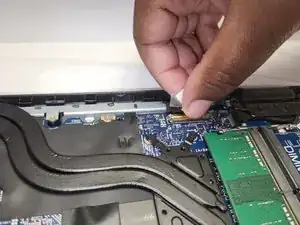

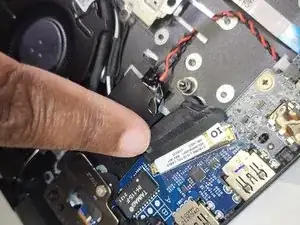

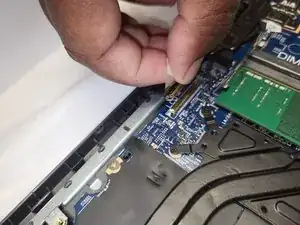

    • Peel the adhesive tape, open the latch, and disconnect the I/O cable from the connector on the system board.

    • Lift and remove the I/O cable from the assembly.

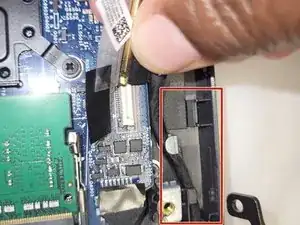

  5. 1DjFH5ZkbmFmYmFW

    • Unroute the display cable from the routing guides in the assembly.

    • Peel the adhesive tape that secures the display cable in place.

  6. oKYuRMmrQULbc1Xd
    oKYuRMmrQULbc1Xd
    Q2GsuyXZuSASiVtR
    2lBELSHtQl4WnnFn

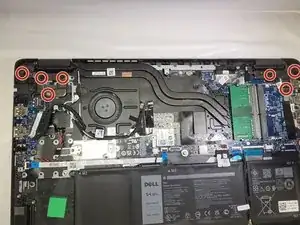

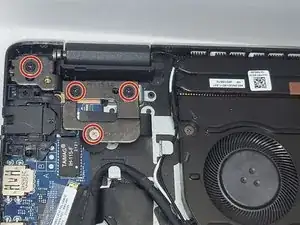

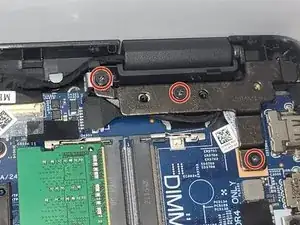

    • Remove the one 4.55mm Phillip # 0 screw and six 2.5mm Phillip #0 screws that secure the display hinges to the system.

  7. LNROeQbGf6SE1tJH

    • Lift the left and right hinges in an upward direction away from the assembly.

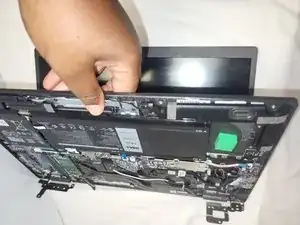

  8. eZRJUMJYYIGIiZvP

    • Lift the assembly off the display assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
