Dell Latitude 6430u Coin Cell Battery Replacement

Written By: Hezekiah Brown
  • Comments: 1
Dell Latitude 6430u Coin Cell Battery Replacement

Difficulty

Easy

Steps

4

Time Required

1 - 3 minutes

Introduction

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery, SD card, base cover, keyboard, and palm-rest assembly from the computer, respectively.

  2. i5DoRdcdD5YOglkh

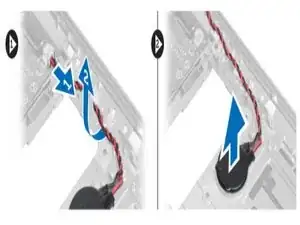

    • Disconnect the coin-cell battery cable. Pry the coin-cell battery upward and remove it from the computer.

    Lousy instructions. [1] It's not enough to write "Remove the battery, SD card, base cover, keyboard, and palm-rest assembly from the computer, respectively" as the first steps to get to the coin battery, but to show someone these steps as well with images. That's at least my opinion. [2] The battery removal images don't show the whole laptop with a location marked, but just a small section where the coin battery and its connection are located. [3] To top it off, the images are slightly blurry and quite distorted.

    Someone who wants to repair their Dell Latitude is better off going to Dell's support website, and download the whole repair manual as a PDF from there. It's very detailed and professionally done.

    Hans M. -

    • Place the coin-cell battery in its slot.

    • Connect the coin-cell battery cable.

    • Install the palm-rest assembly, keyboard, base cover, SD card, and battery on the computer, respectively.

Conclusion

To reassemble your device, follow these instructions in reverse order.
