DualSense Controller V2 Stick Drift Fix

Written By: Alvin2325

Comments: 10

Difficulty

Difficult

Steps

Time Required

1 - 2 hours

Introduction

Is your controller aiming moving on its own? Did your character start to run in other directions when you tries to run straight? You may be having analog stick drift on your PS5 controller.

This guide details how to repair the stick drift issue in a DualSense PlayStation 5 controller.

Like all controllers, PS5 controller drifting issues are caused by physical damage, simple wear, tear due to regular use, and gunk or grease (Yes, your sweaty hands), This guide details how to fix the PlayStation 5 DualSense Controller V2 stick drift. This guide only applies to controllers with gunk or grease that causes stick drift.

Yes, opening up a controller sounds like a drag, and it is much easier when you get a new one. However, repairing your controller not only saves you $70+ bucks but also reduces E-waste. Besides you don't need lots of knowledge to fix stick drift, my guide provided a step-by-step repair. Just follow my guide and your favorite controller can last a couple more years.

Tools

Step 1

This controller is the black version, but this guide applies to every CFI-ZCT1W model.

Step 2

Here is a video demonstrating how bad the controller stick drift was before the fix.

Here is a video demonstrating how bad the controller stick drift was before the fix.

Step 3

Disconnect and power down your controller before you begin.
Insert an opening pick underneath the middle trim at the right bottom of the controller and pry it up to release the clips that secure it.

Step 4

Slide a pick along the lower-right edge to release the clips securing it to the case.

Step 5

Slide a pick along the lower-left edge to release the clips.

Step 6

This is how the controller looks when all the clips are released.

Step 7

Use your fingers to lift up the bottom edge of the middle trim.
Watch out for the two pieces that are hidden underneath the touchpad.

Step 8

Insert the flat end of a spudger into the gap between L1 and L2.
Pry upward against L1 to remove the L1 button.

Step 9

Insert the flat end of a spudger into the gap between R1 and R2.
Pry upward against the R1 to remove the R1 button.

Step 10

Use a Phillips screwdriver to remove the two 6.4 mm screws behind the L1 and R1 buttons, as well as the two 6.4 mm screws that secure the bottom corners of the lower case.
You will have a total of four 6.4 mm Phillips screws. Make sure not to lose any of them.

Step 11

Use the pointed edge of a spudger to unclip the two clips on either side of the headset jack.

Step 12

Slide the spudger along the edge to release the clips that secure the rear case.

The last clip near the top os very stiff the first time you complete this. Took me over 20 minutes of adjusting and prying to finally remove both sides. I then had trouble removing it because the two clips near the jack in Step 11 had reengaged with all the wiggling about I did.

Ed Greenwood -

Same here. Super hard to get off for the first time

Ethan -

Step 13

Same as the other side, slide the spudger along the edge to release the clips that secure the rear case.

Step 14

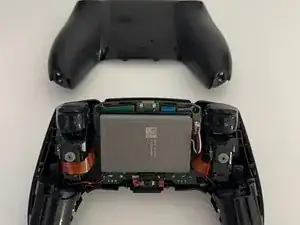

Remove the rear case.

Step 15

Use tweezers or your fingers to disconnect the battery from the motherboard.
To prevent damaging the wire, grip the white connector, not the wires.

A levering or prying action works well here. Just pulling up means you can slide upwards and damage the wires.

Ed Greenwood -

Step 16

Use tweezers to disconnect the upper and lower microphone cables.
Use the pull tabs to disconnect the cables. Don't pull on the cables themselves.

Step 17

Use a Phillips screwdriver to remove the single 6.4 mm screw that secures the battery bracket.
Remove the battery bracket.
At this point, you will have a total of five 6.4 mm Phillips screws.

Step 18

Use a pair of tweezers to grip the touchpad ribbon cable, and pull it out of the motherboard.
Use the pull tabs to disconnect the cables. Don't pull on the cables themselves.

Step 19

Use a pair of tweezers to disconnect the right trigger ribbon cable.
Use the pull tab to disconnect the cable. Don't pull on the cable itself.

Step 20

Use a pair of tweezers to disconnect the left trigger ribbon cable from the motherboard.
Use the pull tab to disconnect the cable. Don't pull on the cable itself.

Step 21

Make sure you have disconnected the four ribbon cables from the motherboard before moving on to the next step.

Step 22

Gently push the joysticks to separate the motherboard from the case.
The motherboard and the case are still connected through 4 soldered wires. Take care not to strain them.

Step 23

Use your fingers to pull the joystick covers straight up and off.

Step 24

Use a spudger to pry the drifting joystick potentiometer slots open.
Pry open the potentiometer slot gently or you will damage the slot.

Step 25

Use tweezers to remove the wiper.
Try to keep the slots down to about only 60^o. Completely prying it open will damage the slots and they will not be able to close.

Step 26

Repeat the previous step for the other potentiometer.
Try to keep the slots down to about only 60^o. Completely prying it open will damage the slots and they will not be able to close.

Step 27

Use a pair of tweezers to remove the wiper.

Step 28

Dampen a cotton swab with high-concentration isopropyl alcohol.
Flip the wiper to the other side and use the damp cotton swab to rub off any gunk or grease.
Repeat this step for the other wiper.

Step 29

Use a cotton swab damp with high-concentration isopropyl alcohol to clean the inside of both of the potentiometer slots.

Step 30

Put the cleaned wipers back into their respective potentiometer slots.
When reinstalling the wiper, make sure the curved prongs is at the top.

Step 31

The remainder of the guide details reassembly.
Use your finger to push and close each slot.
Make sure you hear a "click" when you close it.

Step 32

Reinstall the joystick covers.

Step 33

Put the motherboard back into the case.
Make sure the four highlighted cables are on top of the motherboard.

Step 34

Use tweezers to insert the touchpad cable into its socket.
Use your finger to fully seat the cable.
Push gently to prevent breaking the ribbon cable.

Step 35

Use tweezers to put the trigger cable in the slot, then place the tweezer on the top sides of the cable and push it down until it's fully reseated.

Step 36

Use tweezers to put the other trigger cable in the slot, then place the tweezers on top of the cable and push it down until it's fully reseated.

Step 37

Use a pair of tweezer to insert the lower microphone cable the cable into its slot.
Push the cable down until it's fully reseated.

Step 38

Use a Phillips screwdriver to reinstall the 6.4 mm screw that secures the battery bracket.

Step 39

Insert the upper microphone cable into its socket.

Step 40

Plug in the battery cable.

Step 41

Assemble the rear case.

Step 42

Use a Phillips screwdriver to install the two 6.4 mm screws behind the L1 and R1 buttons, as well as the two 6.4 mm screws that secure the bottom corners of the lower case.

Step 43

Put the L1 button cover back in.
Press it down and until you hear a "click."

Step 44

Put the R1 button cover back in.
Press it down and until you hear a "click."

Step 45

Reinstall the middle trim.
These two highlighted pieces need to go under the touchpad.

Step 46

Here's the testing again; see the difference?

Here's the testing again; see the difference?

Conclusion

If you are still having problems after following all the steps in this guide, your controller probably has another issue.

Please check out other iFixit repair guides, such as replacing the entire Joystick.

Hope you find this guide helpful and may your controllers last forever!
