Introduction

Use this guide to open your Samsung Galaxy Buds Live for repairs. The photos for this guide were taken with the left earbud, but the procedure is the same for both buds.


Galaxy Buds Live are rated IPX2 for ingress-resistance, meaning they are splash resistant. After this repair, they may lose their water protection.

  1. uQIxwDuNpBCcYSIu
    uQIxwDuNpBCcYSIu
    bKNbuSpnBsOkEkRC

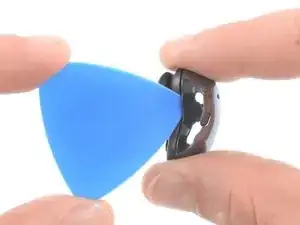

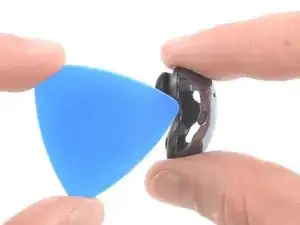

    • If possible, discharge your Galaxy Buds Live before replacing the battery.

    • Place the tip of an opening pick between the plastic cases on the curved inside of the earbud.

    • Insert the pick at a steep angle.

    Before you begin, remove the rubber pads around the charging contacts (that help the bean stay in the ear). I did not and almost damaged mine while getting the battery out in the next steps.

    Kirill Elagin -

  2. S5gRE1uQfLas64kN
    S5gRE1uQfLas64kN
    fIFfC6krXZuuJCA5

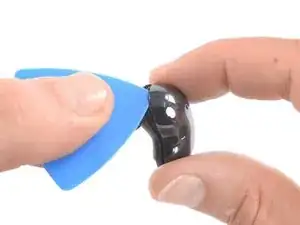

    • Keep the opening pick at a steep angle and slide it along the top to loosen the case.

    • Take your time and do your best not to deform the plastic.

    I found that trying to do this while inserting the pick at a steep angle caused it to snap and chip the paint.

    The easiest technique for me was to clamp the bud vertically, i.e. from top to bottom with just a regular clamp I use when gluing stuff – putting pressure vertically makes a little opening on the curve. Then I inserted the pick and removed it, which made the gap larger. Then I inserted a thin plastic spudger (iFixit Halberd Spudger) to keep the gap open, removed the bud from the clamp, and did a full circle with the pick.

    Kirill Elagin -

  3. NQravTwpyCtrfhRQ
    NQravTwpyCtrfhRQ
    W3cWYjhSAKWQAMHq

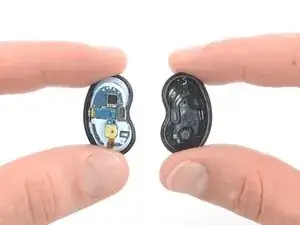

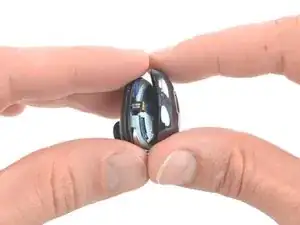

    • Remove the case.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
