Introduction

If your Kodak EasyShare (model M2008) is having issues with the battery door not closing securely, appears damaged or broken then use this guide replace the battery door. The battery door ensures that the battery is making contact to turn the camera on and off. A battery door that is broken or damaged will impact the camera turning on as well as causing the camera to loose power suddenly. Before reading this guide further, inspect the battery door for cracks/bends in the battery door, examine the quality of the latch and look to see if there is a build up of corrosion as all of these factors can inhibit the ability of the door to shut. Ensure that these are the causes of the issues with the camera and that is not coming from another area of the camera. Step 3 mentions the removal of six screws make sure that these are not lost as they are needed to reattach the device casing.

  1. pGaQBnD1oJWN1c1P
    pGaQBnD1oJWN1c1P
    OvWfZAcGKjp2lBTD
    • Place thumb firmly on batter cover.

    • Slide thumb right, the cover should follow and pop up.

  2. dNXTBrmScmjIuyyp
    dNXTBrmScmjIuyyp
    cdqyFUE4xluqGoLk
    • Place thumb on orange tab and pull back towards screen.

    • The battery should pop up.

    • Gently lift battery out.

  3. lODeyTKFJLnXTsFZ
    lODeyTKFJLnXTsFZ
    eelLeVsYPneWZq4B
    cQSDJTOIs2eiKGLJ
    • Remove screws from along outer edge of casing.

    • There are 6 screws in total.

    • Righty tighty, lefty loosey!

  4. DsG2LCfoRWfXdNHl
    DsG2LCfoRWfXdNHl
    NLMjZxghanRiRqYF
    ZRYeIeHndCKRJseo
    • Gently lift off front and back casing.

  5. oJ6mbLgVIFaGNuoJ
    oJ6mbLgVIFaGNuoJ
    ZiAFylNpGUKehfdN
    e1wiVykvvMuGwjlx
    • Remove screws along side.

    • Gently peel off side casing.

  6. qjFCOlLwNSKC2W2S
    qjFCOlLwNSKC2W2S
    GcQNwSlUKXiTWGcJ
    N2uokOygQ21tT1S4

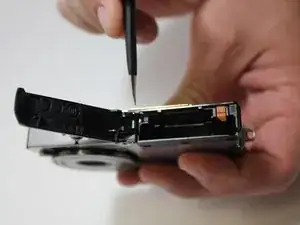

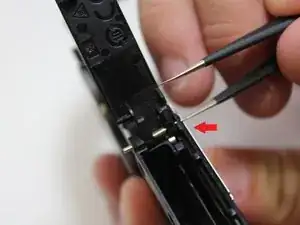

    • Open the battery door.

    • Identify the retaining pin.

    • Push retaining pin out with small tweezers. Pushing the pin out halfway.

  7. E6L6KHFyEkGCHGll
    E6L6KHFyEkGCHGll
    IMmMfJiFgEWuxPgY
    IYH2HFSnYDPeKp3P

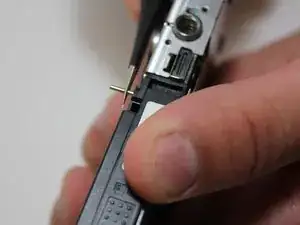

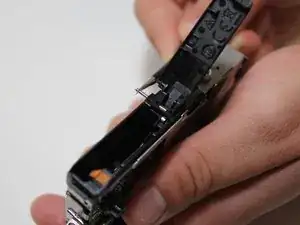

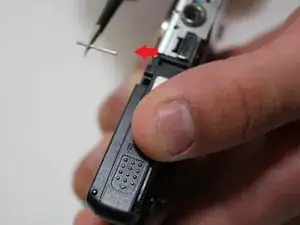

    • Having the pin out halfway.

    • Shut the door to ensure that no loose parts get lost.

    • Next pull out the remaining length of the pin.

  8. WRrwn5Nf2u1oRDlG
    WRrwn5Nf2u1oRDlG
    blAhuioVHqqASAs2

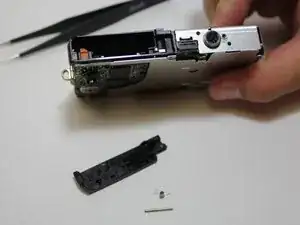

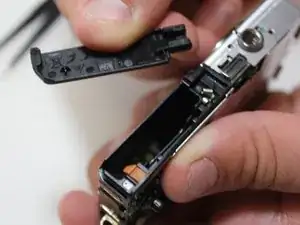

    • Gently lift off door cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
