Motorola Moto G Stylus 4G (2023) Screen Replacement

Written By: Camille Holley
  • Comments: 0
Motorola Moto G Stylus 4G (2023) Screen Replacement

Difficulty

Moderate

Steps

12

Time Required

35 minutes

Introduction

Full Device Name: Motorola Moto G Stylus 4G (2023)

Model Number: XT2317-2.

Alternate Name: Moto Stylus 4G (2023).

Objective: This guide aims to provide detailed instructions for replacing the screen on the Motorola Moto G Stylus 4G (2023).

About the Screen: The screen, also known as the display assembly, is a critical component of the device that allows you to interact with your phone, view content, and navigate through apps. If your screen is cracked, damaged, or malfunctioning, replacing it can restore functionality and enhance the visual experience of your device.

Device Symptoms: Common symptoms indicating the need for screen replacement include:

  • Cracked or shattered screen
  • Unresponsive touch functionality
  • Display artifacts such as lines, discoloration, or black spots
  • Inability to view content clearly due to screen damage

Tips and Warnings:

  • Shattered Glass Displays: Handle the device with care, especially if the screen is shattered, to avoid injury from glass shards.
  • Proper Device Disposal: Dispose of the old screen responsibly, following local regulations for electronic waste disposal.
  • Hard Drive Backups: Before starting the replacement process, ensure you have backed up important data to prevent data loss.

  1. wGjrLQWONZNuQRdN
    wGjrLQWONZNuQRdN
    hJqTpUrkD5LRMrIV

    • Insert an opening pick under the edge of the case and slide it around the edges.

    • Separate the back panel from the rest of the phone.

  2. 5AGtKRrh2ufqJcrT

    • Remove the seven 4 mm screws from the phone’s top with a Torx T5 screwdriver.

  3. CHsNKlxDLZvaZ4ri
    CHsNKlxDLZvaZ4ri
    WRSLKVRUbekaCMpW

    • Use the opening pick along the edges to separate the camera lens glass from the board.

  4. se5OKYxII61smP5C

    • Remove three 4 mm screws with a Torx T5 screwdriver.

  5. yNxbuAfPL36VNhS3

    • Pry off the top perimeter with an ESD-safe spudger and set it aside.

  6. CWgIdYJMs2RnEcAu
    CWgIdYJMs2RnEcAu
    VqjKuydEapBJhJBT

    • Pull the black tab off of the battery gently with your hand.

  7. hCb4TPyHNVhZRZcH
    hCb4TPyHNVhZRZcH
    cu5ngxQTgRFkHgq6

    • Disconnect the four cables by inserting the opening pick beneath the edge of each.

  8. Ji6BKN2TR3kSOGDK
    Ji6BKN2TR3kSOGDK
    4AfwLCHmGNqvkW5X

    • Together with the opening pick and an ESD-safe spudger, remove the old battery.

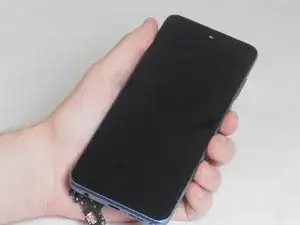

  9. dMbKwsAHShqHXAKN

    • Apply heat using a heat gun to soften the adhesive around the edges of the screen.

    • Avoid overheating to prevent damage to the device.

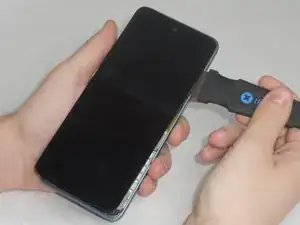

  10. tKlPbCNnBQHcDcVR
    tKlPbCNnBQHcDcVR
    2E4TEJRSSTB5t5HG

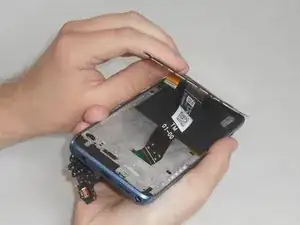

    • Insert a Jimmy into the crevice between the screen and the rest of the phone.

    • Work around the edges to gently pry the screen away from the phone.

    • Be careful to avoid glass fragments from the broken screen.

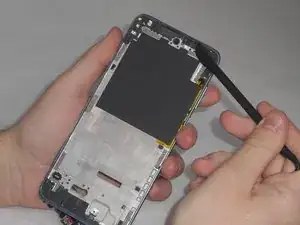

  11. lPuKWxtRALVxcLYU

    • Use a spudger to disconnect the screen connectors from the motherboard.

    • Remove any screws that are holding the screen in place.

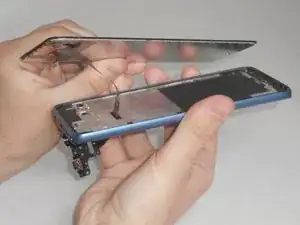

  12. NfbvHmJYXOEUlEbE

    • Remove the screen from the phone.

    • Clean the frame of any adhesive residue or glass shards.

    • Align the new screen to check its fit to the frame. Place the new screen with new adhesive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
