Introduction

Before you start

This process involves replacing electrical components. Ensure the drill is completely disconnected from any power source!

It is very important to ensure the electrical connection are correctly replaced so the drill works properly upon reinstallation.

If a cellphone with a camera is accessible to you, it may help to take more close-up pictures of the drill before disassembly.

This process requires very little tools, pliers may be helpful but are not required. all of the electrical connections on the trigger are push connections. Some connections are tougher to remove than others so you might need to pull harder than you think.

  1. V12ufqLFBXRJ1vYV

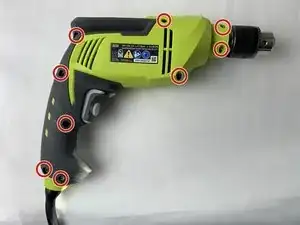

    • Turn the drill so that the screws (circled in red) face upwards.

    • Use the T20 screwdriver to remove all nine screws.

  2. V1HYuTT3Nq2FATho
    V1HYuTT3Nq2FATho
    NhXq2DepdGSQqVxj

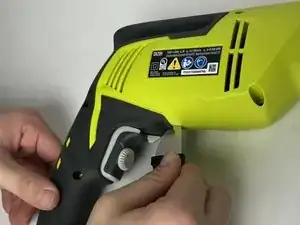

    • Insert a flat object between the right and left sides of the drill to lift the right side of the case.

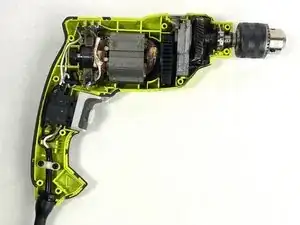

    • Remove the right side case to expose the inside of the drill.

  3. VcaLrAHRICHWVWJm

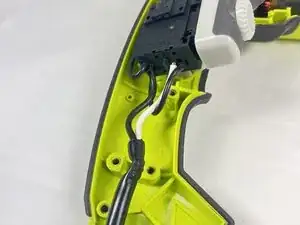

    • The bend relief cover at the bottom of the handle.

    • Follow the wires coming out of the bend relief cover to the white power cord clamp with the two 14 mm black PH1 screws.

  4. E2ZMINJuDeS2UpEZ
    E2ZMINJuDeS2UpEZ
    u1GnGTEoVX5gLCPu

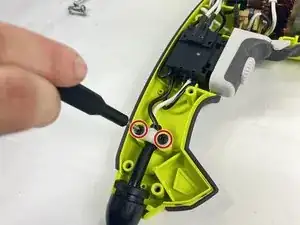

    • Unscrew the two 14 mm PH1 screws holding the power cord wire in place.

    • Lift the switch box from its place gently.

  5. cwuvDfU4PDSAlHiL
    cwuvDfU4PDSAlHiL
    FPPgdLDUUQjc2vtI
    vSxfdhgmvVeLEVym

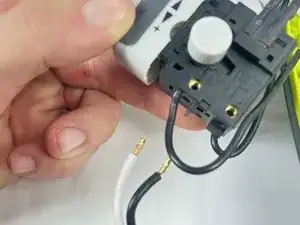

    • Remove the two little screws holding the brass terminal lugs in place. Although it is not required, you can remove the screws completely if you find that doing so is more convenient.

    • Gently pull the white positive and black negative wires that are connected to the switch box.

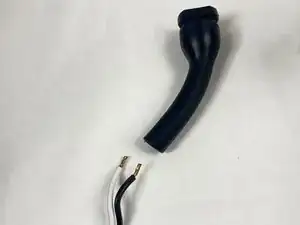

    • Slide the bend relief guard off the cord towards the loose connections.

  6. Tkn4AWTQkqkb1dBQ
    Tkn4AWTQkqkb1dBQ
    nFJYK1dEQ33q5L2c

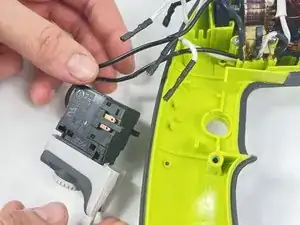

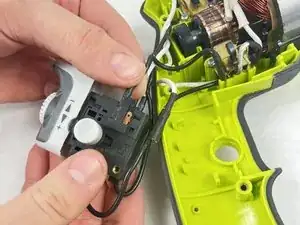

    • Pull the four cables from the trigger terminals.

  7. AWxB2V3JYNJSARMr

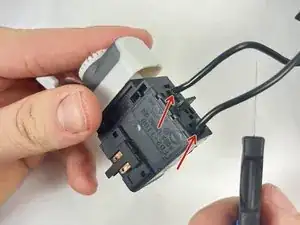

    • Pull the two black wires that connect the motor from the switch box.

    • This may require some force.

    • When replacing the switch box these connections push into the new switch box.

Conclusion

To reassemble your device, follow these instructions in reverse order.
