Introduction
This guide shows the user how to remove the Sony Clie’s rear cover case, which exposes the inside of the device to replace its internal components.
-
-

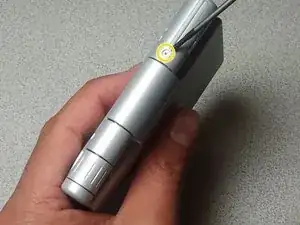

Use the Phillips #1 screwdriver to remove the four screws from the back of the rear cover.
-
Use the Phillips #1 screwdriver to remove the screw on the right side of the rear cover.
-
Use the Phillips #1 screwdriver to remove the screw on the top of the rear cover.
-
-
-
Remove the side cover.
-
Slowly pull on the rear cover case to separate it from the rest of the device. The case should not come off completely.
-
-
-
Gently remove the speaker wire from the device.
-
The rear cover case should now be completely separate from the device.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
