Introduction

If you need to disassemble the Tommee Tippee 1149 Pouch Warmer, then this guide will show you the steps. This will allow you to examine and diagnose any problems with components of the device.

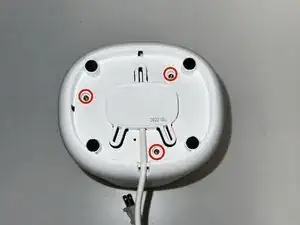

  1. xyTyPci6UCIjsXbL
    • Remove the bottom three 5 mm screws that hold the shell together using a Triangle #2 screwdriver.

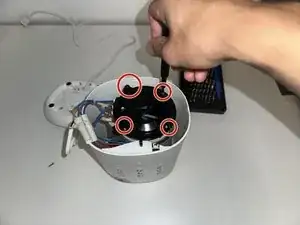

  2. VYJAG4fYRmCtmYht
    • Remove the four 10 mm thermal resistor cover screws using a Phillips #0 screwdriver.

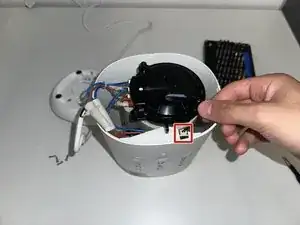

  3. HySShvwFkdnwKvH4
    • Unplug the thermal sensor that runs through the black cover.

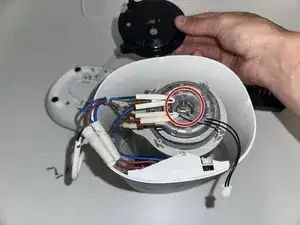

  4. GQkXXQNZMLEBTUHb
    • Remove the center thermal sensor metal cover 5 mm screw with a Phillips #0 screwdriver.

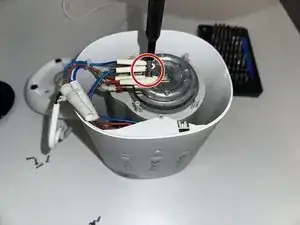

  5. opPeY15b4pGHeIOP
    • Remove the metal wire holder.

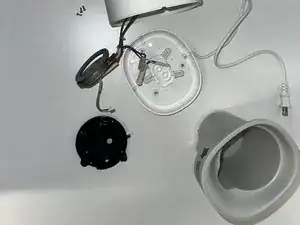

  6. AMQnxg5W6qQ44kGa
    • Optional: You can take the shell apart from where it fits together to further expose parts.

    • Part List: 4 5mm Phillips #0 screws, 3 10mm Triangle #2 screws, thermal resistor cover, inner pouch holder, outer plastic housing, thermal resistor, bottom shell

Conclusion

To reassemble your device, follow these instructions in reverse order.
