Introduction

If the keyboard of your Toshiba Satellite C655-S5142 isn't responding to attempts to type, this guide will help you to properly replace the previous components. If your keyboard is faulty, then it's likely that one key or multiple keys are no longer functioning as intended. Before you start the replacement, check to see if cleaning out the sensors by using a flathead screwdriver to gently pry up the keys, then dusting the keys using a dust blower or safe brush, before deciding to replace the keyboard itself. It may just need to be cleaned in order to function properly. Try to type a sentence or two using the faulty keys in order to make sure it's not resolved.

This is a sensitive part of the computer, so try to keep your area clean of food or dust while you work. If crumbs or dust get inside of the laptop's sensors, it may not function properly, even after replacing it.

Before beginning, ensure the laptop itself is turned off and disconnected from any external power source, such as a charger or hard drive.

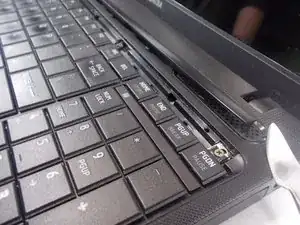

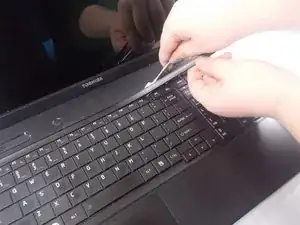

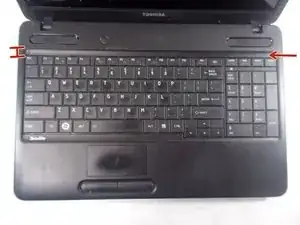

  1. ISuoBWAJ5ZjJrjKP
    ISuoBWAJ5ZjJrjKP
    psJ2yduxK5GGduDd
    Vg4m1CoEE2ojMgQe
    • Using the metal spudger, gently insert it under the plastic covering slowly easing it up until the screws are revealed.

    • The plastic covering will make clicking sounds when being removed this is normal, you are not breaking it.

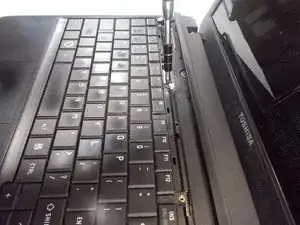

  2. HaHLBcgM6m4MBJPY
    HaHLBcgM6m4MBJPY
    JnbVCBHkHfN3jNIo

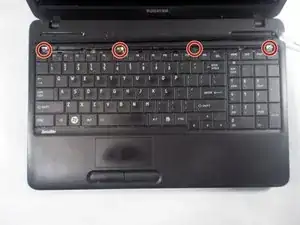

    • Using a phillips head screwdriver, unscrew each of the four screws.

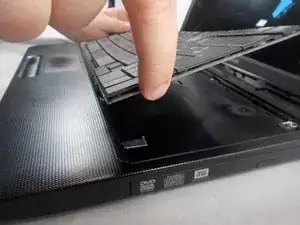

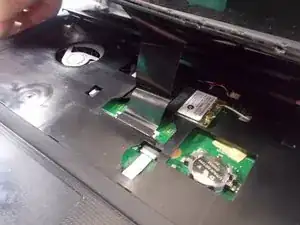

  3. J5gYeVnmqsZHcdnC
    J5gYeVnmqsZHcdnC
    hKlFDtJShVadKn6H
    • Gradually lift the keyboard up, it will reveal the connector cable.

    • Do not pull the keyboard away too hard, this may damage the connector.

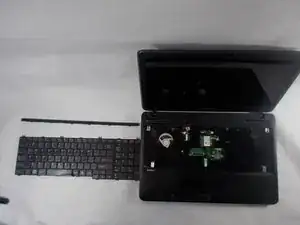

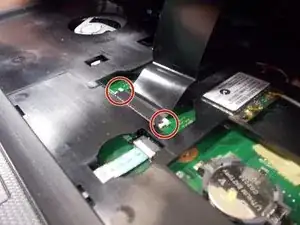

  4. QYqpEeFGhQkH6EBB
    QYqpEeFGhQkH6EBB
    qF3trXrRv1LI2FZY
    • With the keyboard resting up, pull the tabs to disconnect the cable from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
