Roborock VibraRise Teardown

Written By: DegenFixer
Published: 27/02/25
  • Comments: 0

Roborock VibraRise Teardown

Published: 27/02/25

Teardown

Introduction

This is just a short teardown guide for the robotic vacuum cleaner part VibraRise.

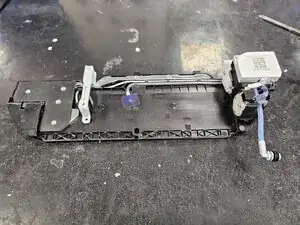

  1. W2RyD4FCB4gDnthh
    W2RyD4FCB4gDnthh
    JgP1DIkaDVlst2TC

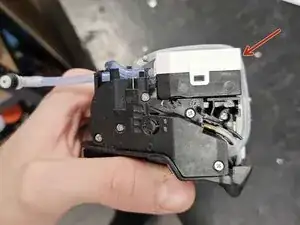

    6sg4jU3CniZ1oaUw

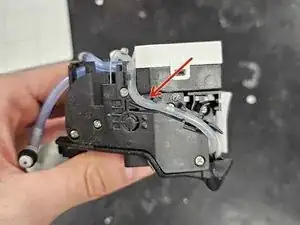

    • Just move it over.

    • You can detach it from the pump, but it's generally unnecesarry.

  2. AKmV1fjSxBLRCI4u

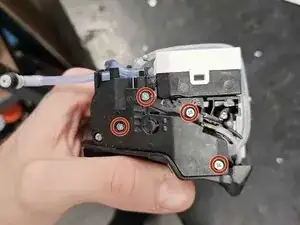

    AKmV1fjSxBLRCI4u

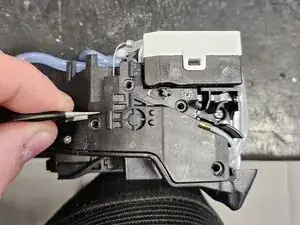

    ovFQsc4fmw6OxCGj

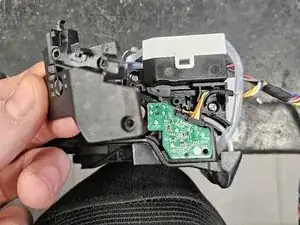

    VXE6BmQZmxlH4rOQ

    • Remove the screws, then remove the side panel.

  3. 1JW4j4H4cmbKxpDS

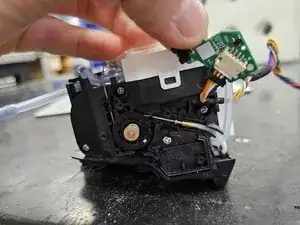

    1JW4j4H4cmbKxpDS

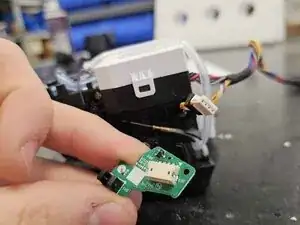

    ObALPkUykOXkFjsW

    • Curl it up and remove it from the cable.

  4. awSIYSM1YUvpFdAP
    awSIYSM1YUvpFdAP

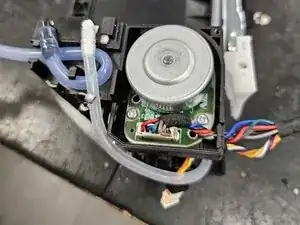

    4VwBRZoTWdo2FZO1
    2j4nFCwkZEQFknoS

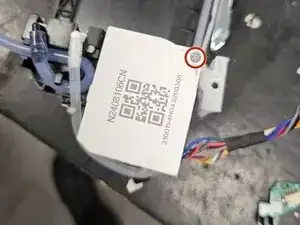

    • Remove the top cover.

    • Remove the cable line.

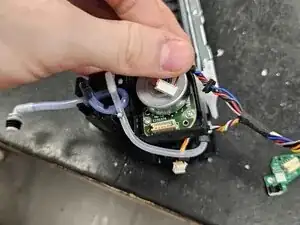

    • You can remove the motor by hammer the rod out from the top. Before doing this, you will have to open the bottom of the VibraRise unit and detaching the driving rod from the vibrating unit.

    • I don't bother with this, as every time I have, the VibraRise unit didn't work anymore.
